Your custom building will be engineered by a Chartered Engineering Firm to the NZ Building Code and Regulations.
The Featured Shed includes the following –
(this was a build job so items marked ** are not relevant for a Kit)

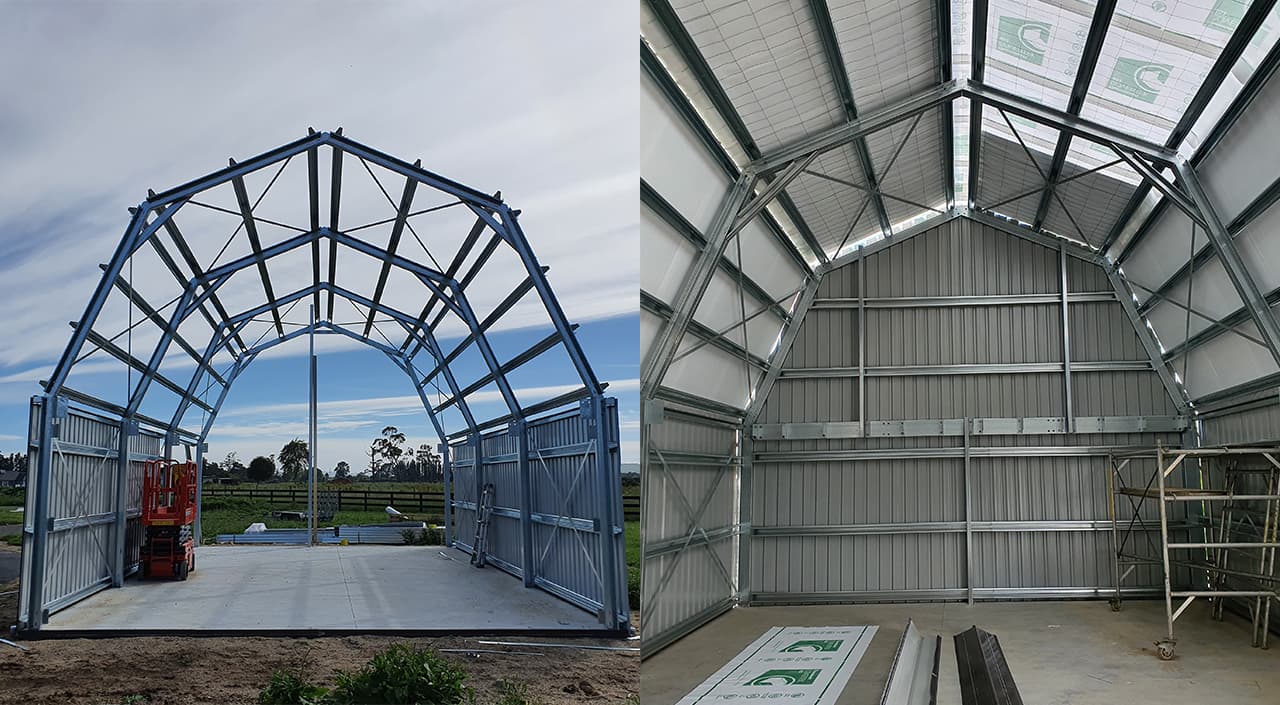

- NZ Made Steel Structure which won’t rot, warp or leak
- The Building is designed for a high wind speed zone
- This Building is designed for Importance Level 2 according to the NZ Building Code
- Roof Pitch Mansard
- Colorsteel T-Rib Cladding 0.4 Gauge for the Roof and Walls coloured in your choice of Colours
- Colorsteel 0.55 Gauge Vermin Flashing for the Perimeter of the Building
- Safety mesh and Thermakraft wrap for the Roof and Watergate Plus Wrap for the Walls

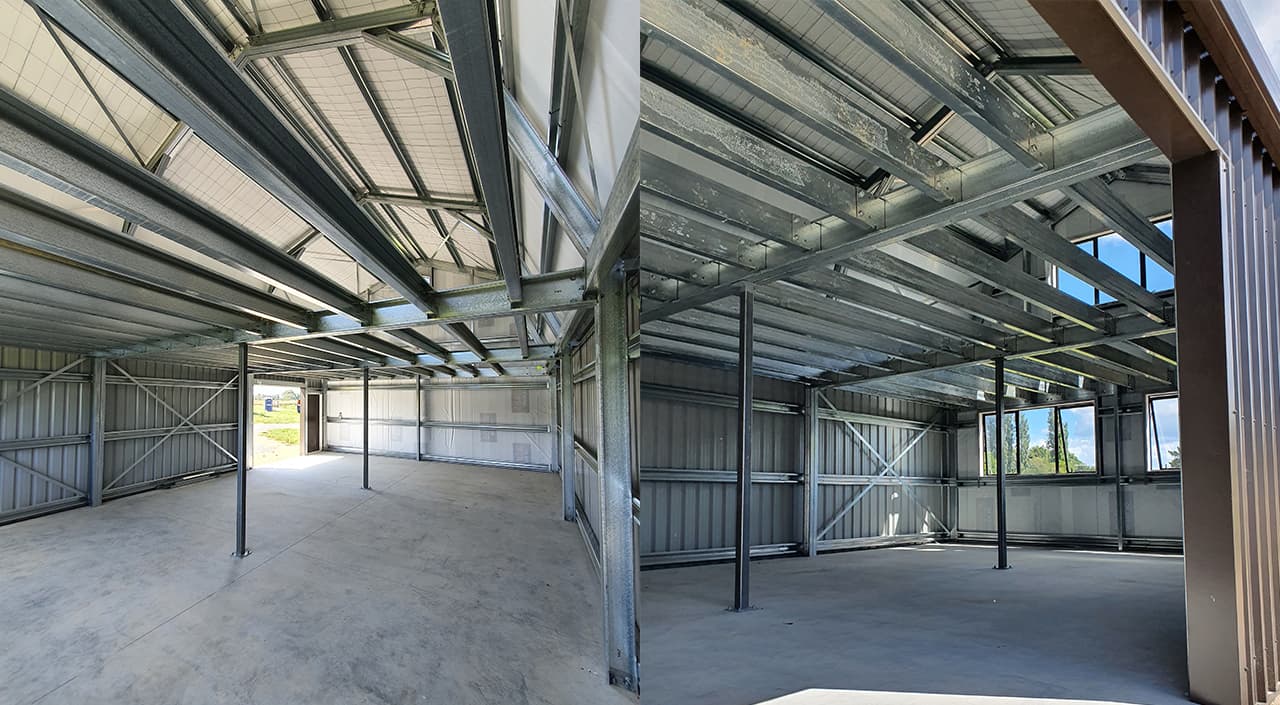

- Engineered Mezzanine Floor (11m) for 3 bays from right end. 2Kpa. Joist Spacing 600.
- One Metalcraft Steel Access Door
- One Barn Window 0.510h x 1.000w
- Three Residential Grade aluminum 3 pane 2 Opening Windows 14.210h x 2.385w – single glazed
- One Colorsteel Garador Series 1 Manual Opening Roller Door 2.20h x 2.39w
- Bird Brushes for all Roller Doors
- Site Measured Colorsteel 0.55 Gauge Custom Flashings
- 125mm Colorsteel gutters with 80mm coloured Marley PVC downpipes

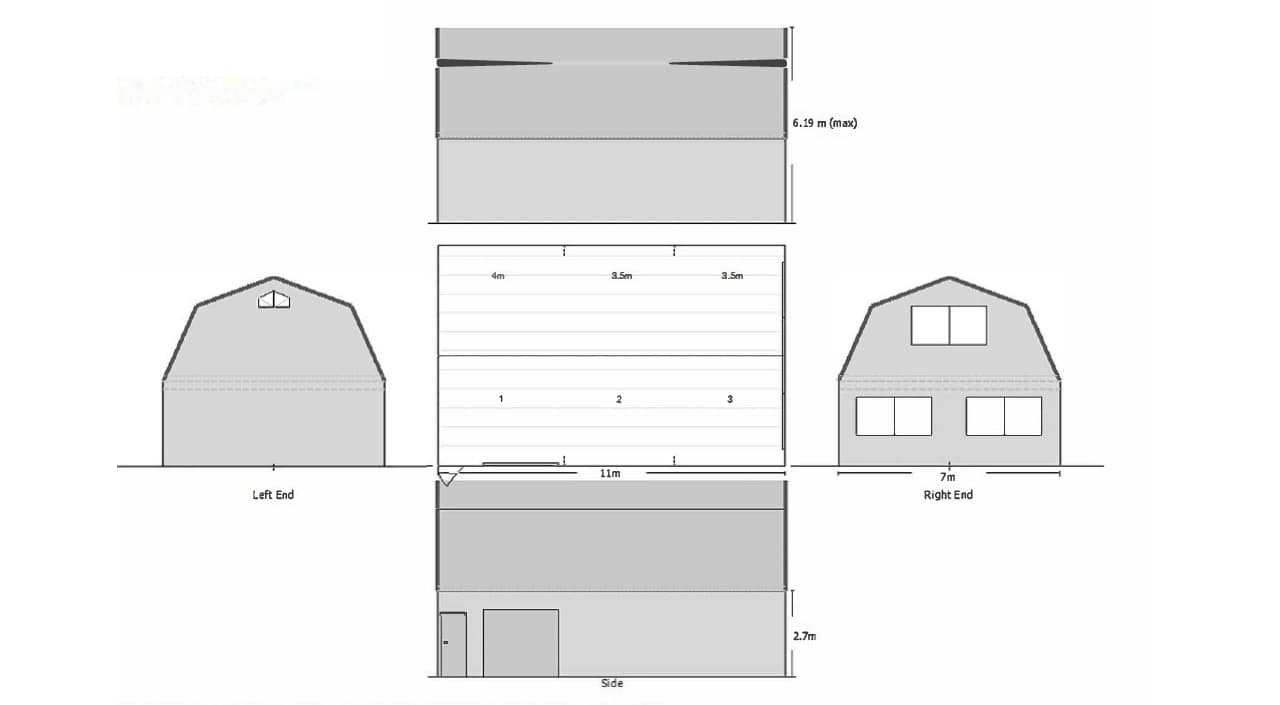

- Complete Plans including PS1 and Site Plan to submit to council for building permit
- Kit Delivery to site via Hiab
- Concrete Slab 100mm thick, 20 MPA strength with 665 mesh
- Site Works not included we can arrange our contractor to quote directly for this
- Building permit preparation and submission – Council Fees not included

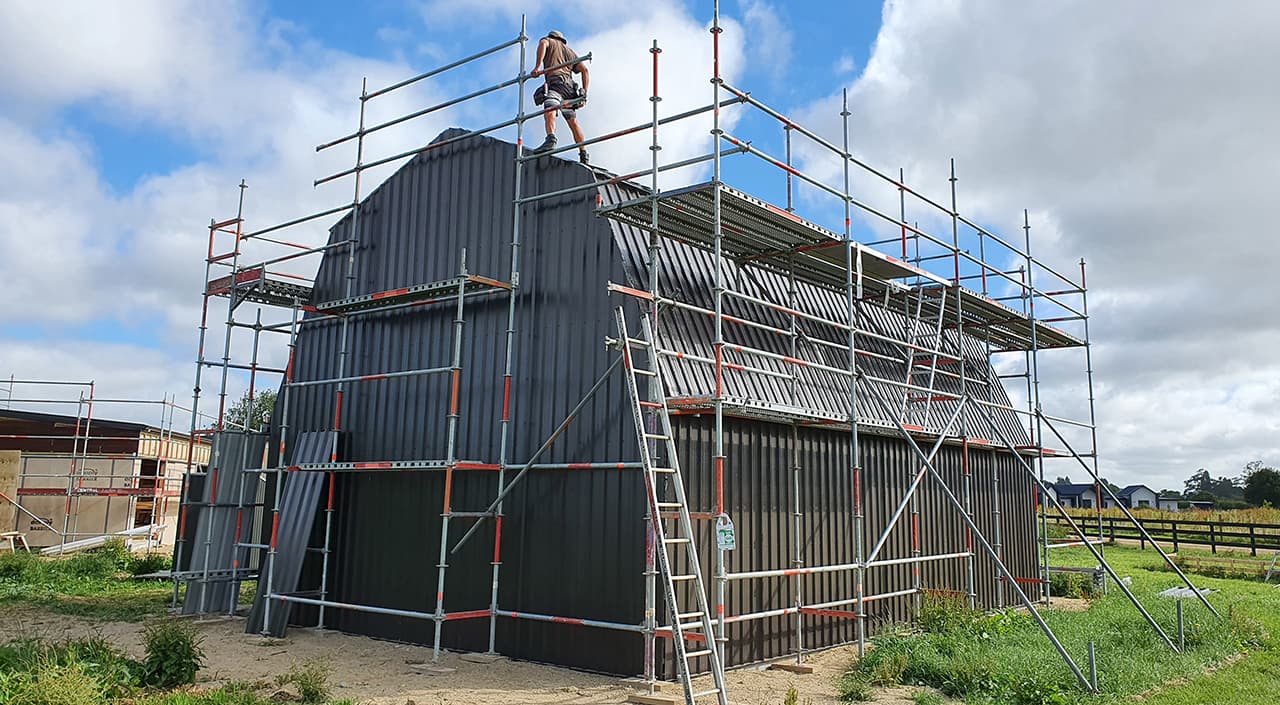

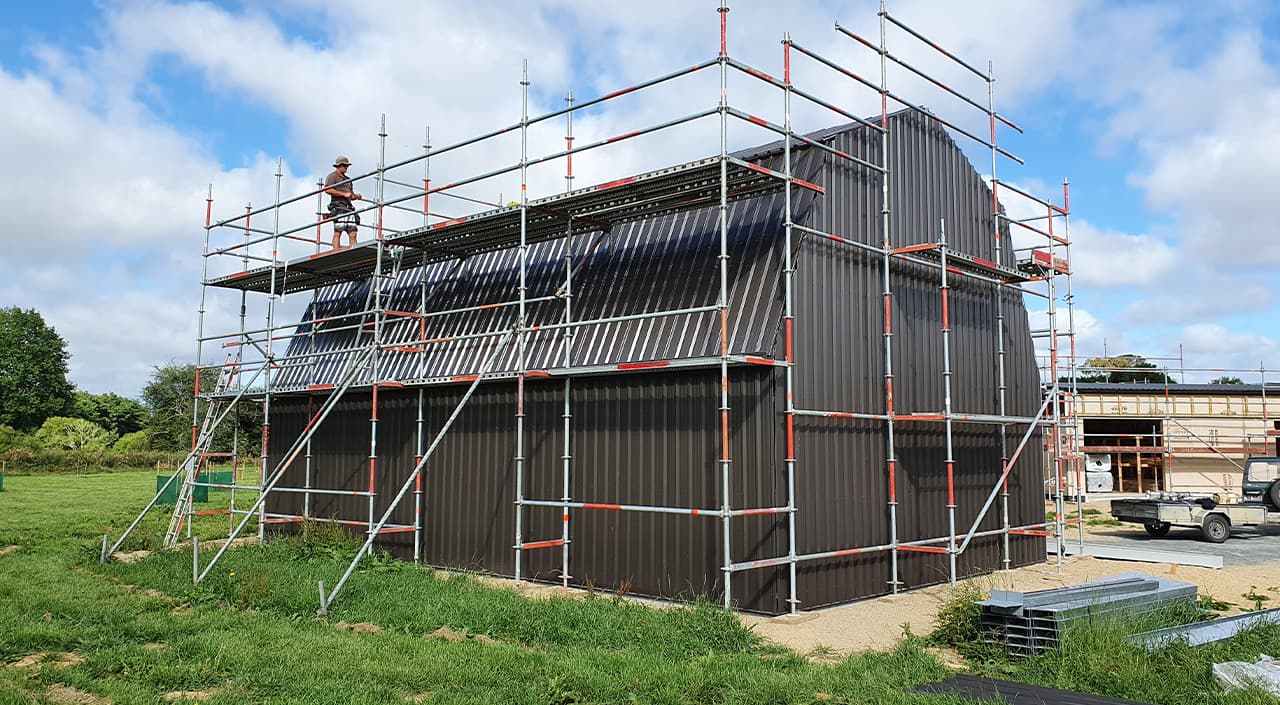

** All scaffolding, crane and scissor lifts to comply with Worksafe working at heights regulations
** Full Construction and Installation of Roller Doors
Note: All pricing is a guide only, priced to the specifications above, and based on good ground.
Contact us now for a personalised quote.
